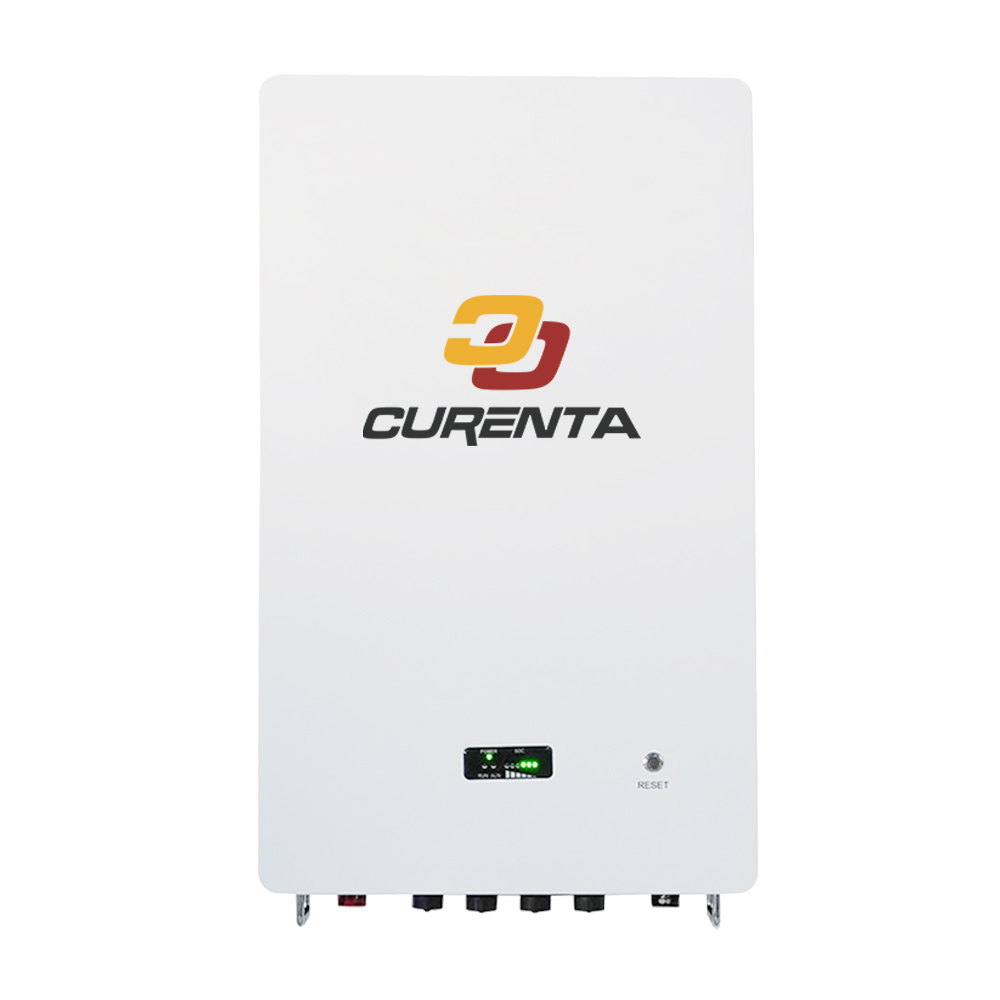

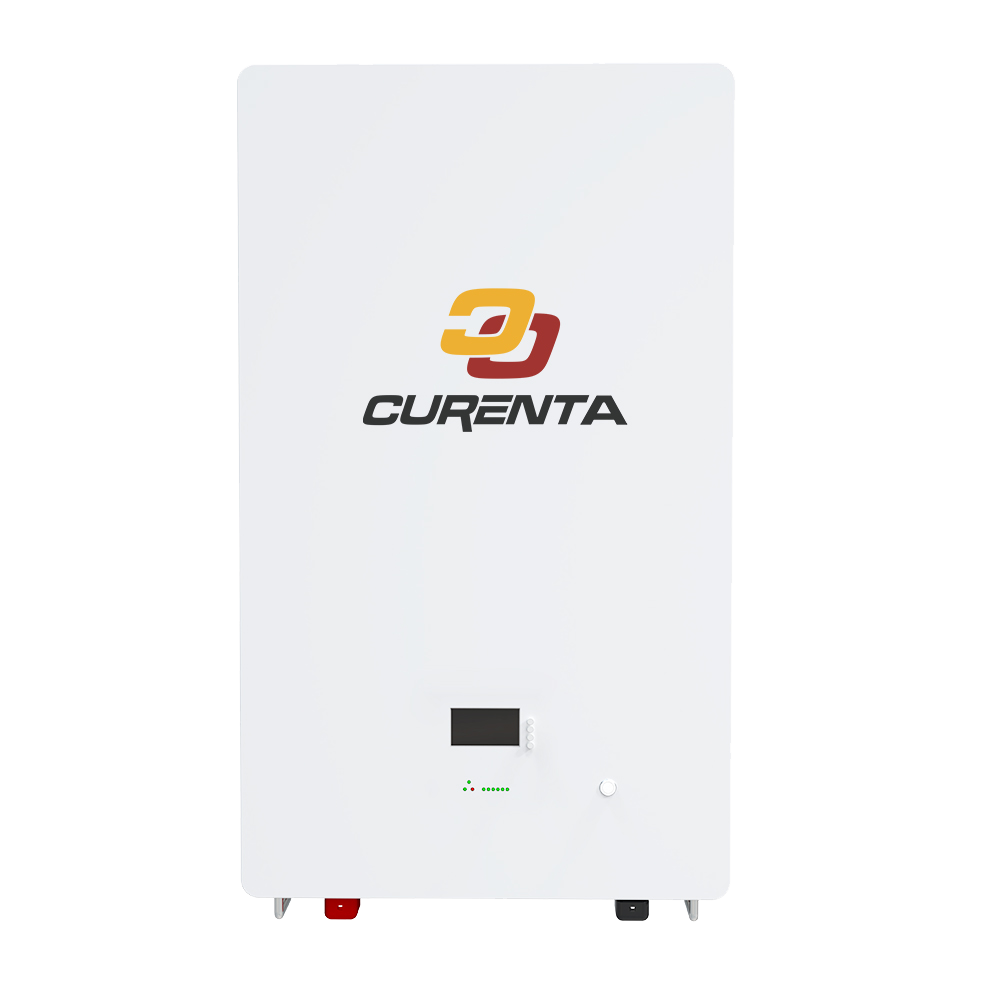

Wall Mounted Residential Battery
Wall Mounted residential battery can store electricity converted from solar, wind and other renewable energy sources for residential use.Compared with other residential batteries, the Wall Mounted residential battery allows high cost-effectiveness solution.
Easier Installation
Long LifeSpan
Higher Performance
Super Safe and Reliable
Benefits
-
Perfect Compatibility: Compatible with branded inverters -
Scalability: Maximum 30 in parallel -
Cost Effectiveness Balance: High cost-effectiveness -
Safe&Reliable: Lithium lron Phosphate (LFP) battery
Parameters
- Model
CUR512100W
- Nominal Voltage
51.2V
- Nominal Capacity
100Ah
- Energy
5120WH
- Internal Resistance
≤10mΩ
- Cycle Life
>6000 cycles
- Months Self-Discharge Rate
<3%
- Efficiency of Charge
100%@0.5C
- Efficiency of Discharge
96-99% @1C
- Charge Cut-off Voltage
58.4V±0.2V
- Charge Mode
0.2C to 58.4V, then CV till current to 0.05C(CC/CV)
- Recommend Charge Current
20A-50A
- Max. Charge Current
100A
- Max. Continuous Discharge Current
100A
- Max. Pulse Current
150A
- Discharge Cut-off Voltage
40V
- Charge Temperature
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity
- Discharge Temperature
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity
- Storage Temperature
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity
- Water Dust Resistance
IP67
- Communication
CAN/RS485
- Package
Metal Case
- Dimensions(mm)
750*450*163MM
- Weight(kg)
55kg
- Certificates
UN38.3 MSDS CE
- Display screen
YES
- Bluetooth
Optional
- Parallel Connection
Yes 30pcs Max
- Warranty
5 year
| Model | CUR512200W |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Energy | 10240WH |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >6000 cycles |
| Months Self-Discharge Rate | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 58.4V±0.2V |
| Charge Mode | 0.2C to 58.4V, then CV till current to 0.05C(CC/CV) |
| Recommend Charge Current | 20A-50A |
| Max. Charge Current | 200A |
| Max. Continuous Discharge Current | 200A |
| Max. Pulse Current | 250A |
| Discharge Cut-off Voltage | 40V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP67 |
| Communication | CAN/RS485 |
| Package | Metal Case |
| Dimensions(mm) | 880*520*163mm |
| Weight(kg) | 85kg |
| Certificates | UN38.3 MSDS CE |
| Display screen | YES |
| Bluetooth | Optional |
| Parallel Connection | Yes 30pcs Max |
| Warranty | 5 Year |
