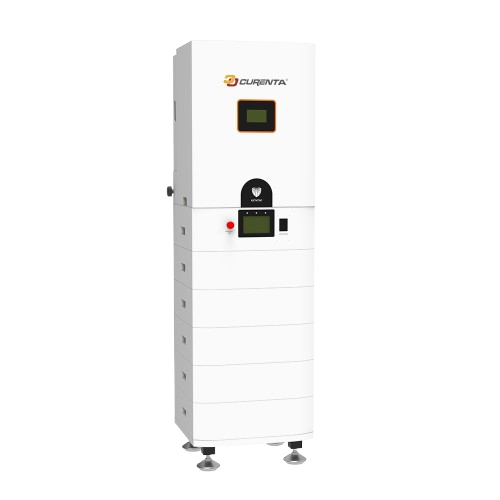

All in One Stackable ESS
All in One Stackable ESS
All in One Stackable ESS
All in One Stackable ESS
All in One Stackable ESS
All in One Stackable ESS
All in One Stackable ESS
Home > Energy Storage Systems > Residential ESS > All in One Stackable ESS
Residential ESS

CURENTA has excellent Lifepo4 battery manufacturing capability and strong R&D center we have leading technology and apply it to product design to provide high quality and high performance LiFePO4 battery solutions.

  • No daily maintenance work and costs
    No daily maintenance work and costs
  • Runs quicker and extended range
    Runs quicker and extended range
  • Up to 75% expenditure saving
    Up to 75% expenditure saving
  • Works well in -4°F-131°F
    Works well in -4°F-131°F
Benefits
  • Power your golf cart with green energy Power your golf cart with green energy
    Power your golf cart with green energy
  • Rapid and efficient charge can increase productivity quickly Rapid and efficient charge can increase productivity quickly
    Rapid and efficient charge can increase productivity quickly
  • To run all day without battery swaps To run all day without battery swaps
    To run all day without battery swaps
  • 5 years warranty brings you peace of mind 5 years warranty brings you peace of mind
    5 years warranty brings you peace of mind
Parameters
CUR20KWH-12KW
ModelCUR20KWH-12KW
MPPT Efficience99.90%
Maximum Efficience>97.8%
Battery
ModelCUR5000AIO
Number of series connections4
Cell typeLi-ion(LFP)
Capacity(AH)100AH
Power(KWH)20KWH
Cycle life>6000
MPPT Input
Max. Input Power(KW)18KW
Max. Input Voltage(V)1000V
MPPT Voltage Range(V)180~900
Number of MPPT Trackers2
Number of input strings per MPPT1/1
Max. Input Current(A)15/15
Maximum short-circuit current (A)18/18
Battery port
Working voltage range(V)180~700V
Max. charging and discharging current(A)100A
On-Grid connected output parameters
Nominal Power(KW)12KW
Nominal Voltage(V)380/400,3L/N/PE
Frequency   50Hz/60Hz
Max. Output Current(A)18A
Off-Grid connected output parameters
Nominal Power(KW)12KW
Nominal Voltage(V)380/400,3L/N/PE
Frequency   50Hz/60Hz
Max. Output Current(A)18A
Basic parameters
Operation temperature"-20℃~+60℃"
Working Altitude (m)<4000m
IP GradeIP54
Size(W*H*D)(mm)509*446*1384
Certificate
Safety StandardIEC62109-1/-2
EMC StandardEN61000-6-1/-3, IEC61000
On-Gride StandardAS4777.2:2020
On-Gride StandardEN50519-1:2019+AC:2
TransportationUN38.3
CUR25KWH-15KW
ModelCUR25KWH-15KW
MPPT Efficience99.90%
Maximum Efficience>97.8%
Battery
ModelCUR5000AIO
Number of series connections5
Cell typeLi-ion(LFP)
Capacity(AH)100AH
Power(KWH)25KWH
Cycle life>6000
MPPT Input
Max. Input Power(KW)22.5KW
Max. Input Voltage(V)1000V
MPPT Voltage Range(V)180~900
Number of MPPT Trackers2
Number of input strings per MPPT1/2
Max. Input Current(A)15/28
Maximum short-circuit current (A)18/32
Battery port
Working voltage range(V)180~700V
Max. charging and discharging current(A)100A
On-Grid connected output parameters
Nominal Power(KW)15KW
Nominal Voltage(V)380/400,3L/N/PE
Frequency   50Hz/60Hz
Max. Output Current(A)22A
Off-Grid connected output parameters
Nominal Power(KW)15KW
Nominal Voltage(V)380/400,3L/N/PE
Frequency   50Hz/60Hz
Max. Output Current(A)22A
Basic parameters
Operation temperature"-20℃~+60℃"
Working Altitude (m)<4000m
IP GradeIP54
Size(W*H*D)(mm)510*446*1745
Certificate
Safety StandardIEC62109-1/-2
EMC StandardEN61000-6-1/-3, IEC61000
On-Gride StandardNRS097-2-1:2017
On-Gride StandardG98 G99
TransportationUN38.3
CUR30KWH-17KW
ModelCUR30KWH-17KW
MPPT Efficience99.90%
Maximum Efficience>97.8%
Battery
ModelCUR5000AIO
Number of series connections6
Cell typeLi-ion(LFP)
Capacity(AH)100AH
Power(KWH)30KWH
Cycle life>6000
MPPT Input
Max. Input Power(KW)25.5KW
Max. Input Voltage(V)1000V
MPPT Voltage Range(V)180~900
Number of MPPT Trackers2
Number of input strings per MPPT2/2
Max. Input Current(A)28/28
Maximum short-circuit current (A)32/32
Battery port
Working voltage range(V)180~700V
Max. charging and discharging current(A)100A
On-Grid connected output parameters
Nominal Power(KW)17KW
Nominal Voltage(V)380/400,3L/N/PE
Frequency   50Hz/60Hz
Max. Output Current(A)25
Off-Grid connected output parameters
Nominal Power(KW)17KW
Nominal Voltage(V)380/400,3L/N/PE
Frequency   50Hz/60Hz
Max. Output Current(A)25A
Basic parameters
Operation temperature"-20℃~+60℃"
Working Altitude (m)<4000m
IP GradeIP54
Size(W*H*D)(mm)510*447*1916
Certificate
Safety StandardIEC62109-1/-2
EMC StandardEN61000-6-1/-3, IEC61000
On-Gride StandardEN 50549-1 for Czech
On-Gride StandardOVE-R25
TransportationUN38.3
CUR30KWH-20KW
ModelCUR30KWH-17KW
MPPT Efficience99.90%
Maximum Efficience>97.8%
Battery
ModelCUR5000AIO
Number of series connections6
Cell typeLi-ion(LFP)
Capacity(AH)100AH
Power(KWH)30KWH
Cycle life>6000
MPPT Input
Max. Input Power(KW)30KW
Max. Input Voltage(V)1000V
MPPT Voltage Range(V)180~900
Number of MPPT Trackers2
Number of input strings per MPPT2/3
Max. Input Current(A)28/28
Maximum short-circuit current (A)32/32
Battery port
Working voltage range(V)180~700V
Max. charging and discharging current(A)100A
On-Grid connected output parameters
Nominal Power(KW)20KW
Nominal Voltage(V)380/400,3L/N/PE
Frequency   50Hz/60Hz
Max. Output Current(A)31A
Off-Grid connected output parameters
Nominal Power(KW)20KW
Nominal Voltage(V)380/400,3L/N/PE
Frequency   50Hz/60Hz
Max. Output Current(A)31A
Basic parameters
Operation temperature"-20℃~+60℃"
Working Altitude (m)<4000m
IP GradeIP54
Size(W*H*D)(mm)510*447*1916
Certificate
Safety StandardIEC62109-1/-2
EMC StandardEN61000-6-1/-3, IEC61000
On-Gride StandardVDE-AR-N 4105:2018
On-Gride StandardEN50549-1:2019 for Poland A&B
TransportationUN38.3
