Low-Voltage Stackable Residential Battery
Low-voltage stackable residential battery features a low-voltage battery pack that can store electricity converted from renewable energy sources such as solar and wind power for residential use.Compared with high-voltage stackable residential battery, low-voltage stackable residential battery offers lower costs and broader application, suitable for setups with a low power output, such as a regular household.
Low-Voltage Stackable Residential Battery
Low Voltage Battery Pack
Low Cost
Wide Applications
Benefits
-
Smart and Easy Operation: Supporting RS485/CAN remote monitoring -

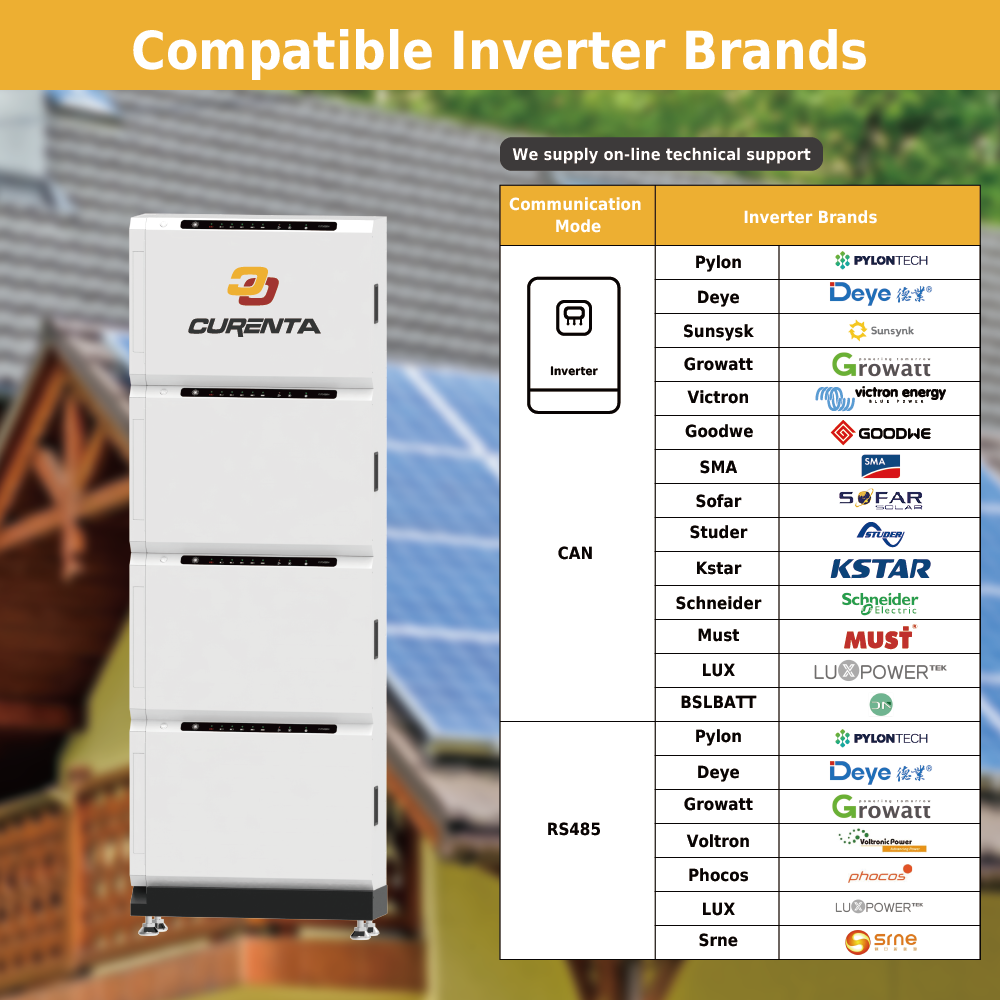

Perfect Compatibility: Compatible with branded inverters -
Safe&Reliable: Lithium lron Phosphate(LFP) battery -

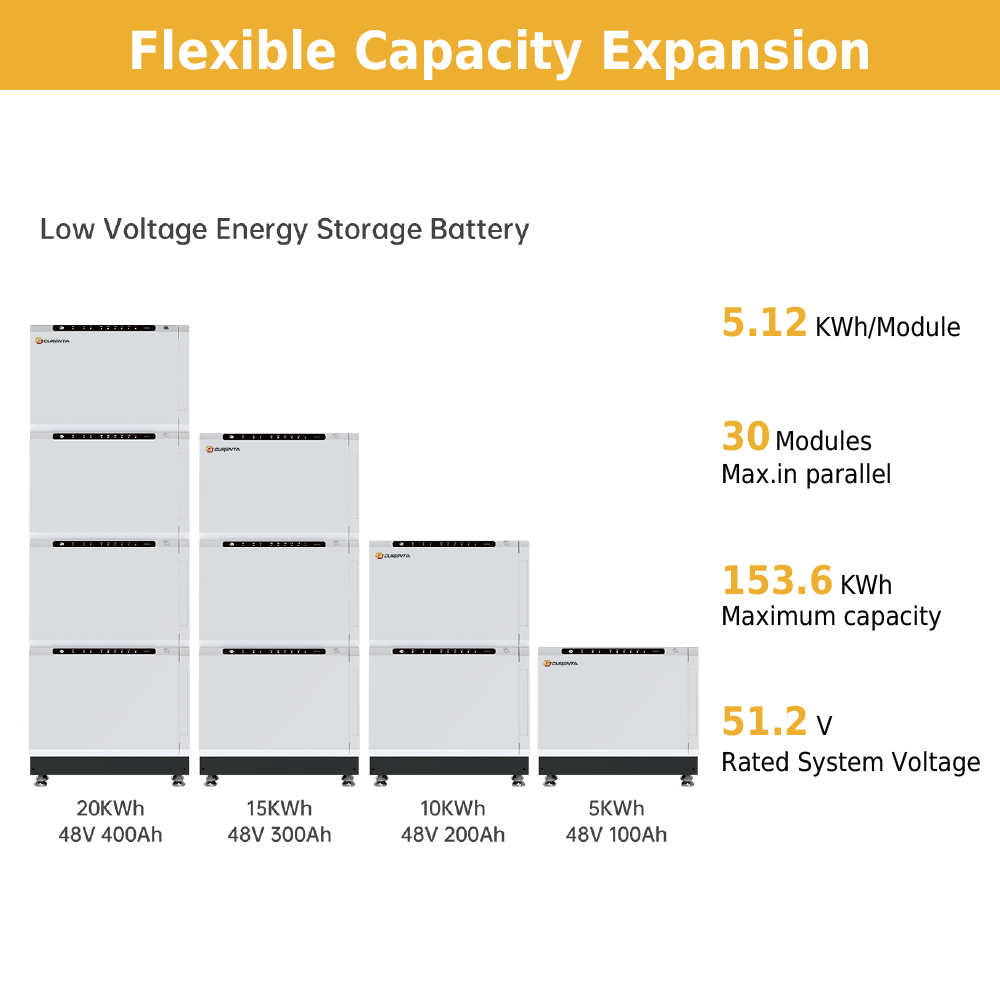

Module Design: Supporting 1~4 modules
Parameters
| Typical Model | CUR5000H |
| Parallel Connection | Max. 30pcs, Up to 150kWh |
| Maximum Mounting Height | <200CM |
| System Parameters | |
| Battery Type | LiFePO4 Battery Cell |
| Battery Module | 51.2V 100Ah |
| Nominal Energy | 5120Wh |
| Nominal Voltage | 51.2V |
| Operating Voltage | 40V -58.4V |
| Max. Continuous Charging/Discharging Current | 100A |
| Max. Peak Charging/Discharging Current | 150A (5s) |
| Depth of Discharge | 1 |
| Bluetooth | Yes,Build in Bluetooth 5.0 |
| Communication Interface | CAN/RS485 |
| Dimensions (W*H*D) (mm/inch) | 592*400*176mm / 23.43'*15.75'*7.15' |
| Weight (kg/lbs) | 47kg / 103.62lbs |
| Mounting Method | Stackable,Wall Mounted or Rack Mounted |
| Operating Ambient Temperature Range | Charge:0~55ºC / Discharge:-20~65ºC |
| Allowable Relative Humidity Range | 0% to 95% (non-condensing) |
| Cooling Method | Natural Convection |
| Warranty | 5 Years |
