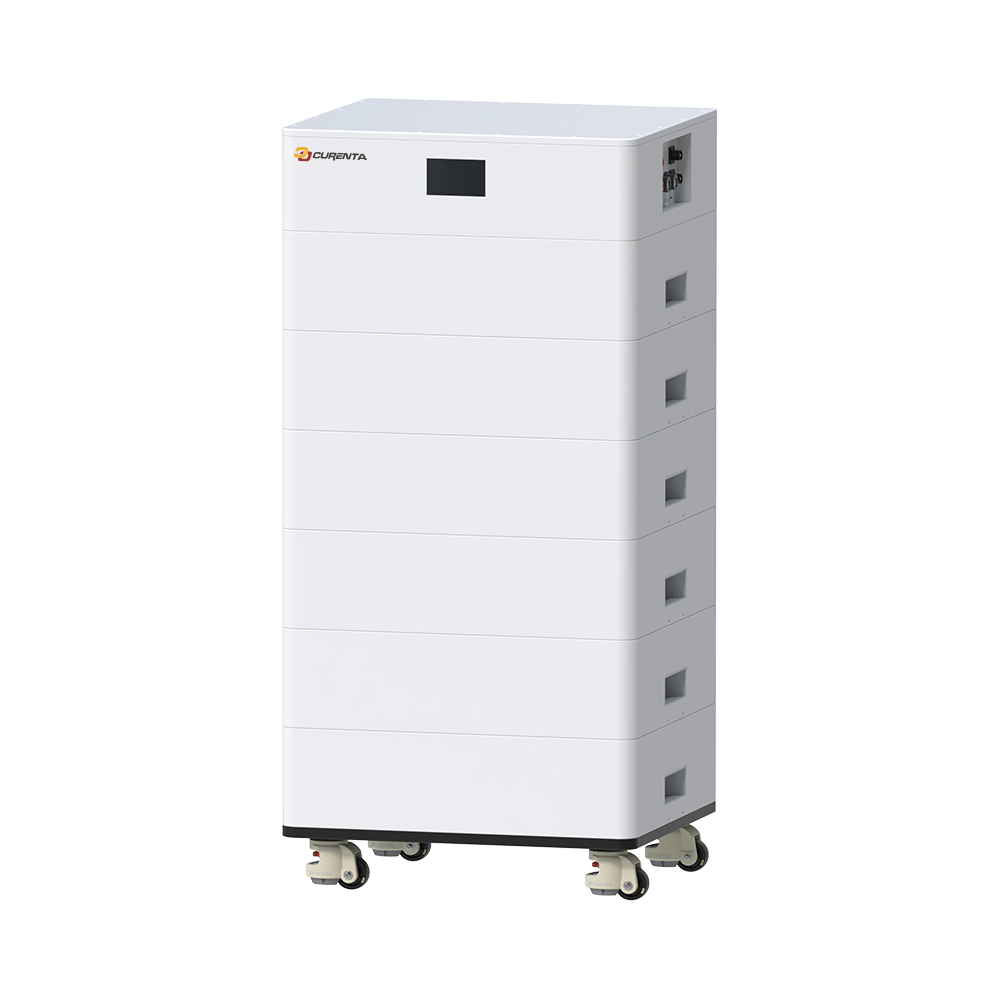

High Voltage Stackable Residential Battery

High Voltage stackable residential battery features a High Voltage battery pack that can store electricity converted from renewable energy sources such as solar and wind power for residential use.Compared with high-voltage stackable residential battery, High Voltage stackable residential battery offers lower costs and broader application, suitable for setups with a low power output, such as a regular household.

  • High Voltage Stackable Residential Battery
    High Voltage Stackable Residential Battery
  • High Voltage Battery Pack
    High Voltage Battery Pack
  • Low Cost
    Low Cost
  • Wide Applications
    Wide Applications
Benefits
  • Smart and Easy Operation: Supporting RS485/CAN remote monitoring Smart and Easy Operation: Supporting RS485/CAN remote monitoring
    Smart and Easy Operation: Supporting RS485/CAN remote monitoring
  • Perfect Compatibility: Compatible with branded inverters Perfect Compatibility: Compatible with branded inverters
    Perfect Compatibility: Compatible with branded inverters
  • Safe&Reliable: Lithium lron Phosphate(LFP) battery Safe&Reliable: Lithium lron Phosphate(LFP) battery
    Safe&Reliable: Lithium lron Phosphate(LFP) battery
  • Module Design: Supporting 1~4 modules Module Design: Supporting 1~4 modules
    Module Design: Supporting 1~4 modules
Parameters
CUR10K100H
ModelCUR10K100H
Number of Battery Modules4
Nominal Energy20.48 KWh
Nominal Voltage204.8V
Operating Voltage Range160.0-233.6V
Dimension (L*W*H)550*470*879mm
Weight245.92Kg
ModelCUR17K100H
Number of Battery Modules7
Nominal Energy35.84KWh
Nominal Voltage358.4V
Operating Voltage Range280.0-408.8V
Dimension (L*W*H)550*470*1326mm
Weight406.48Kg
General
Battery TypeLithium Iron Phosphate(LiFePO4)
Recommend Charge Current20A~50A (0.2C~0.5C)
Max. Con. Charge Current100A
Max. Con. Discharge Current100A
Peak Discharge Current200A (30s)
IP GradeIP65
Noise<50dB
Operation Temperature RangeCharge: 0~55℃ / Discharge: -20~60℃ / Storage: 0~45℃
Cycle Life≥6000 times
[Standard discharge (0.2C₅)after standard charge (0.2C₅)]
Battery Module
ModuleCUR512100HV
Nominal Voltage51.2V
Nominal Capacity100Ah
Rated Energy5.12KWh
Dimension (L*W*H)550*470*171mm
Weight53.52kg
Battery Control Unit
CommunicationCAN
DisplayLCD screen
Dimension (L*W*H)550*470*183mm
Weight19.24kg
Base
Base TypeRemovable base
Dimension (L*W*H)550*470*123mm
Weight12.64kg
CUR12K100H
ModelCUR12K100H
Number of Battery Modules5
Nominal Energy25.60KWh
Nominal Voltage256V
Operating Voltage Range200.0-292.0V
Dimension (L*W*H)550*470*1028mm
Weight299.44Kg
ModelCUR20K100H
Number of Battery Modules8
Nominal Energy40.96KWh
Nominal Voltage409.6V
Operating Voltage Range320.0-467.2V
Dimension (L*W*H)550*470*1475mm
Weight460Kg
General
Battery TypeLithium Iron Phosphate(LiFePO4)
Recommend Charge Current20A~50A (0.2C~0.5C)
Max. Con. Charge Current100A
Max. Con. Discharge Current100A
Peak Discharge Current200A (30s)
IP GradeIP65
Noise<50dB
Operation Temperature RangeCharge: 0~55℃ / Discharge: -20~60℃ / Storage: 0~45℃
Cycle Life≥6000 times
[Standard discharge (0.2C₅)after standard charge (0.2C₅)]
Battery Module
ModuleCUR512100HV
Nominal Voltage51.2V
Nominal Capacity100Ah
Rated Energy5.12KWh
Dimension (L*W*H)550*470*171mm
Weight53.52kg
Battery Control Unit
CommunicationCAN
DisplayLCD screen
Dimension (L*W*H)550*470*183mm
Weight19.24kg
Base
Base TypeRemovable base
Dimension (L*W*H)550*470*123mm
Weight12.64kg
CUR15K100H
ModelCUR15K100H
Number of Battery Modules6
Nominal Energy30.72KWh
Nominal Voltage307.2V
Operating Voltage Range240-350.4V
Dimension (L*W*H)550*470*1177mm
Weight352.96Kg
ModelCUR23K100H
Number of Battery Modules9
Nominal Energy46.08KWh
Nominal Voltage460.8V
Operating Voltage Range260.0-525.6V
Dimension (L*W*H)550*470*1624mm
Weight513.52Kg
General
Battery TypeLithium Iron Phosphate(LiFePO4)
Recommend Charge Current20A~50A (0.2C~0.5C)
Max. Con. Charge Current100A
Max. Con. Discharge Current100A
Peak Discharge Current200A (30s)
IP GradeIP65
Noise<50dB
Operation Temperature RangeCharge: 0~55℃ / Discharge: -20~60℃ / Storage: 0~45℃
Cycle Life≥6000 times
[Standard discharge (0.2C₅)after standard charge (0.2C₅)]
Battery Module
ModuleCUR512100HV
Nominal Voltage51.2V
Nominal Capacity100Ah
Rated Energy5.12KWh
Dimension (L*W*H)550*470*171mm
Weight53.52kg
Battery Control Unit
CommunicationCAN
DisplayLCD screen
Dimension (L*W*H)550*470*183mm
Weight19.24kg
Base
Base TypeRemovable base
Dimension (L*W*H)550*470*123mm
Weight12.64kg
